Hydrostatic testing machine XGJ-10A

Hydrostatic testing machine » XGJ-10A

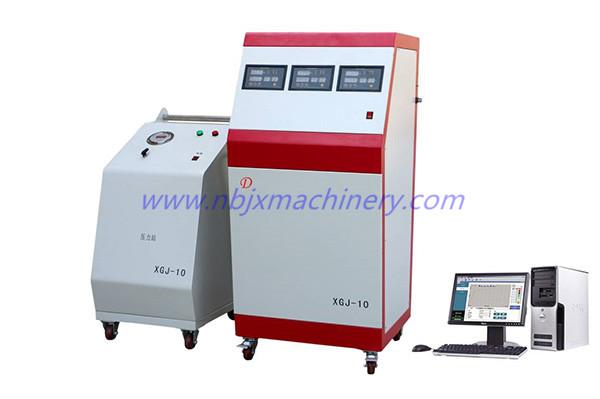

Pictures available of Hydrostatic testing machine:

XGJ-10A

Hydrostatic testing machine

Model: XGJ-10A

Enquiry Now

Hydrostatic testing machine Details

Feature:

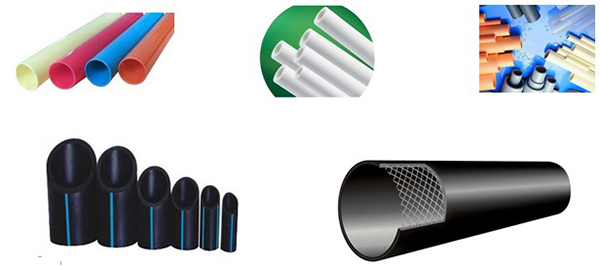

Pipe hydrostatic testing machine is used for measure of thermoplastic pipe, composite pipes (such as PP—R, PP—B, PP—A, PE, PE—X, PVC, PVC—U, PVC—C, PAP and so on) anti-pressure failure time or instantaneous blasting Max. Pressure value when it in long time constant pressure and temperature. And it’s also necessary testing equipment to necessary testing equipment. According to the different temperature, pressure and cycle stress of the pipe, input different parameter into the control terminal, High pressure pump will produce high pressure liquid and transmit it to the sample in calorstat by high-pressure hose through the pressure control system to move on hydrostatic test.




Main parameter:



XGJ-10A系列静液压试验机
XGJ - 10 series a hydrostatic testing machine
试验管径范围
Test pipe diameter range
Φ16mm-1600mm
试验路数
Test channel
3路(单路单模块控制,1-50路可定制)
Three channel(single channel single module control, 1-50 is customization)
控制方式
control mode
操作面板/PC机控制
Operation panel/PC control
数据保存
data storage
PC机实验数据存储、可U盘导出
PC data storage, can be derived by U disk
打印方式
 Printing method
PC机打印输出实验报告
PC printout testing report
时间
Time
计时工作时间
Working time
1s-10000h
计时精度
Taximeter timing accuracy
±0.1%
显示分辨率
display resolution
1s
最小时间设置单位
smallest unit of time Settings
min
压力
Pressure
压力控制范围
Pressure control range
0.2-10MPa(16MPa、20MPa、30MPa)Arbitrary set
压力控制精度
Pressure control accuracy
-1%~ +2%
压力显示分辨率
Pressure display resolution
0.001MPa
测量范围
Measuring range
5%-100%Full-scale
示值允许误差极限
Permissible error limit value
≤1%
恒温介质箱
Constant temperature medium box
控温范围
temperature control range
15~95℃ (refrigeration);indoor temp.~95℃(without refrigeration)
控温精度
temperature control accuracy
±0.5℃
主体材质
material
304 stainless steel
箱盖方式
case cover type
Automatic
补水方式
mend water method
自动补水
automatic
电源
Power
压力控制主机220VAC;压力站三相380VAC;
恒温介质箱三相380VAC
Pressure control host 220 V AC,
Pressure station three-phase, 380 V AC;
Constant temperature medium box three-phase, 380 V AC
