Hot and cold water cycle testing machine XGH-63

Hot and cold water cycle testing machine » XGH-63

Pictures available of Hot and cold water cycle testing machine:

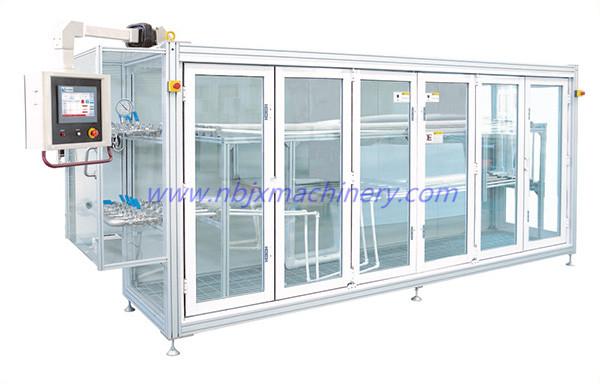

XGH-63

Hot and cold water cycle testing machine

Model: XGH-63

Enquiry Now

Hot and cold water cycle testing machine Details

Function, range of application:


XGH-63 plastic pipe system hot and cold water cycle testing machine, suitable for different pipe and fittings which assembled by regulation request and bear definite internal pressure after temperature alternate change regulation time, inspect pipe and fitting leakage condition, the instrument mainly used for after assembled pipe and fitting piping system testing. Suitable for hot and cold water system using thermoplastic pipe and fitting system test method standard.



Advantage:


1. Special design principle guaranteed the instrument reliability, when in test running process, in the sample pipeline produce high pressure, the instrument another parts hold normal pressure.
2. Energy saving design Max. reduce test running cost.
3. Perfect safety device, abnormal condition instrument automatic stop.




Parameters and configuration:



XGH-63塑料管道系统冷热水循环试验机
Hot and cold water cycle testing machine XGH-63
压力控制范围
Pressure control range
0.4MPa—1.6MPa可任意设定
0.4MPa—1.6MPa can set at will
压力控制精度
Pressure control precision
设定值±0.05MPa(冷热水交替时绝无水锤现象)
Setting value ±0.05MPa (No water hammer when hot and cold water alternate)
冷热水交替时间
Hot and cold water alternate time
小于1分钟
Less than 1 min
冷热水各循环周期
Hot and cold water each cycle period
15分钟
15 min
循环次数
Cycle index
1—10000次之间任意设定
1—10000 set at will
温度示值误差
Temperature indication error
0.5℃
恒温槽内温度均匀性
Thermostatic bath inner temperature uniformity
≤±1
温度控制范围
Temperature control range
冷水:15℃~室温     热水:室温~95℃
Cold water: 15~room temperature Hot water: room temperature~95
适用的最大管径
Suitable Max. pipe diameter
Ф90
试验工位数
Test station quantity
4路
4 way
电源
Power
380VAC/220VAC混用
380VAC/220VAC mixing
标准额定功率
Standard rated power
25kW
仪器尺寸
Dimension
5550mm×2800mm×1800mm
仪器安装尺寸
Installation dimension
8000mm×7000mm×1800mm
